DEKCASSETTE® IDEAL is the latest product in the DEKMETAL DEKCASSETTE® series.

The IDEAL cassette represents the result of several years of development and testing, with the experience of actual implementation.

It introduces a new type of lock, more spatial rigidity for the cassettes, and the option of producing individual pieces up to a length of 6 m while maintaining a wide range of possible material and colour combinations.

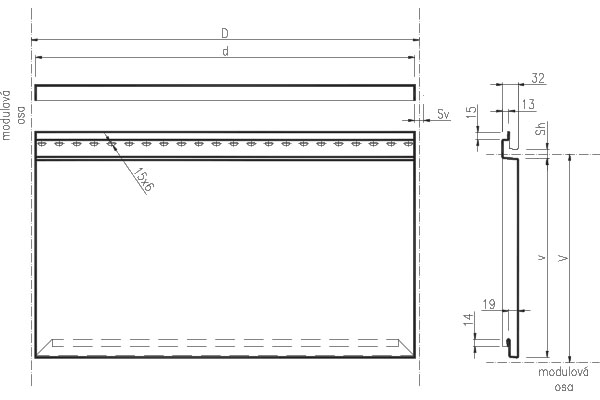

CASSETTE DIMENSIONS(mm)
Composite length D150–6 000
Composite height V100–650 (800*)
Total length dD + Sv
Total height vV + Sh + 35
Depth32
Horizontal joint Sh5–35
Vertical joint Sv5–50
Sheet thickness0.75* / 1.00 / 1.20*
* Production of cassette height of 650-800 mm and implemented sheet thickness: 0.75 mm and 1.20 mm after consultation with the manufacturer.

Unique design with smooth joints

The joint of the IDEAL cassette is smooth without visible anchoring elements, and with an adjustable width for each individual joint.

Variability

The entire DEKCASSETTE® product line, including the IDEAL cassette, provides a wide choice of materials, colours, and their combinations.

An ideal lock

The new lock in IDEAL cassettes provides quick water drainage, more spatial rigidity, and an elegant appearance.

Download

Catalogue of perforation
CE Certificat
Declaration on the properties
Facade catalogue
Product data sheets DEKCASSETTE IDEAL
Product data sheets SUPPORTING GRID
Quality Certification ISO 9001:2008

References

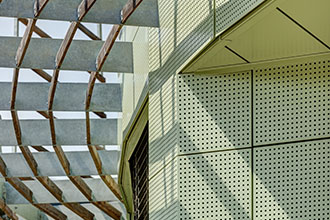

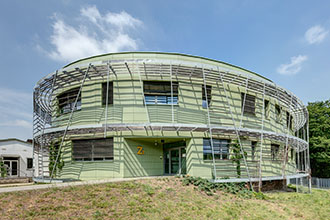

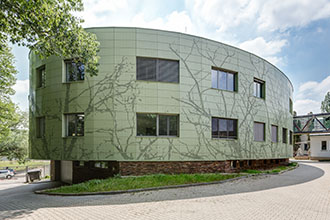

Kindergarden Benešov

Kindergarden Benešov

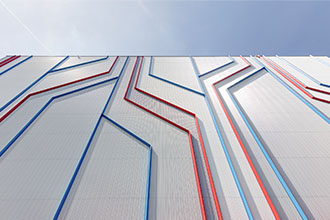

Tribune on Střelecký Island Stadium

Tribune on Střelecký Island Stadium

České Budějovice | Dekcassette Ideal

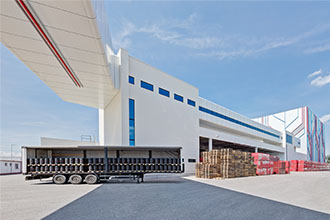

Mondi Bags

Mondi Bags

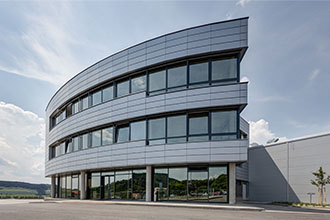

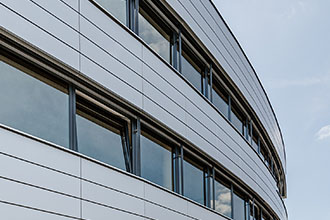

Office building
