The DEKPROFILE® CR is a corrugated metal profile with a sinusoidal crosssection. This type of profile is produced in two variations, according to the height of the wave(s): 18 or 40 mm. Basic profile overlap is about one wave.

DEKPROFILE® CR can be used for cladding buildings of all types, without limitations. It is possible to combine the DEKPROFILE® CR with other visual elements by DEKMETAL, perhaps also with other façade systems (for example, the ETICS contact insulation system

Panel type

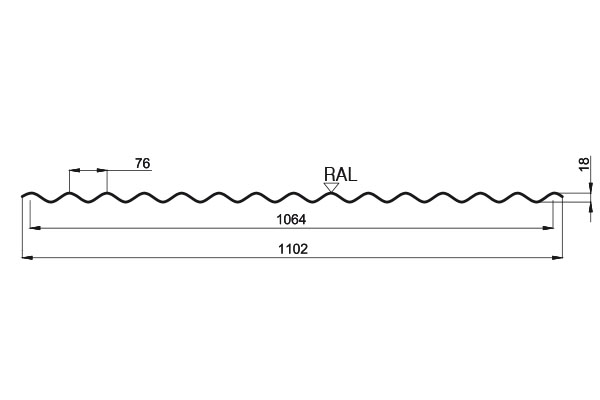

PROFILE DIMENSIONS(mm)
Wave height18
Axial distance between waves76
Composite profile width1 064
Total profile width1 102
Maximum profile length1)<15 000
Minimum profile length500
Standard material thickness0.5–1.00
Minimum roof pitch3)
1) For freight transport by truck, it is possible to use lengths up to a maximum of 13.5 m. The recommended handling length is up to 6 m. 2) We offer some thicknesses only in selected colour shades; one must consult with the supplier. 3) Possible use for less inclined roofs, assuming additional measures - one must, however, consult with the manufacturer.

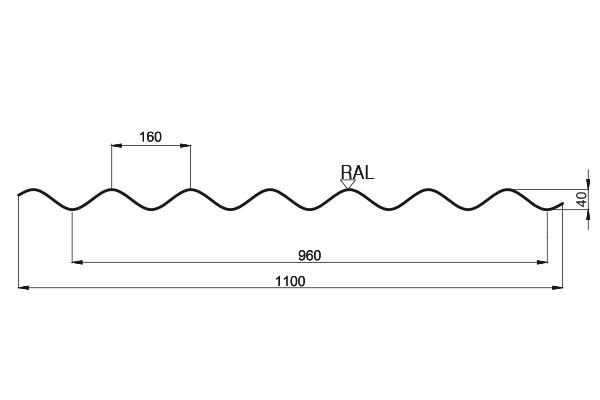

PROFILE DIMENSIONS(mm)
Wave height40
Axial distance between waves160
Composite profile width960
Total profile width1,1
Maximum profile length1)<9 000
Minimum profile length500
Standard material thickness0.63
Minimum roof pitch3)
1) For freight transport by truck, it is possible to use lengths up to a maximum of 13.5 m. The recommended handling length is up to 6 m. 2) We offer some thicknesses only in selected colour shades; one must consult with the supplier. 3) Possible use for less inclined roofs, assuming additional measures - one must, however, consult with the manufacturer.

Industrial design

Façades of the trapezoidal or corrugated profile create a simple industrial character with precision and clean lines.

Easy installation at a reasonable price

Façades, which are implemented through these elements, are marked by a fast and simple installation process. They are the most affordable option of the DEKMETAL façade system.
