DEKPROFILE TR

Dekprofile TR

DEKPROFILE TR

The DEKPROFILE® TR is a trapezoidal sheet metal profile, which the DEKMETAL company produces in three variations, according to its wave height (18, 35, or 50 mm). These profiles are also used as construction roofing. Basic profile overlap is about one wave.

DEKPROFILE® TR can be used for cladding buildings of all types, without limitations. It is possible to combine it with other visual elements by DEKMETAL, perhaps also with other façade systems (for example, the ETICS contact insulation system).

Panel type

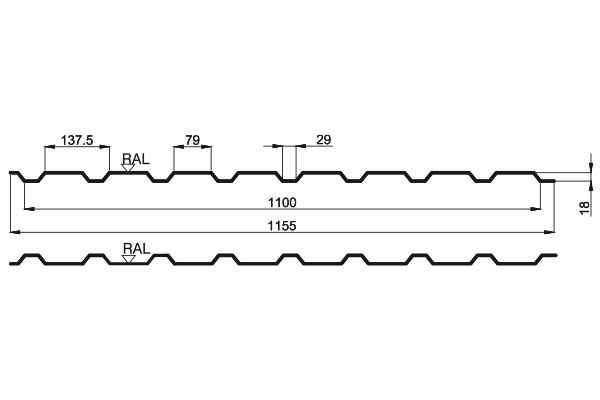

PROFILE DIMENSIONS(mm)
Wave height18
Axial distance between waves137.5
Composite profile width1 100
Total profile width1 155
Maximum profile length1)<9 000
Minimum profile length500
Standard material thickness0.5–0.63
Minimum roof pitch3)
1) For freight transport by truck, it is possible to use lengths up to a maximum of 13.5 m. The recommended handling length is up to 6 m. 2) We offer some thicknesses only in selected colour shades; one must consult with the supplier. 3) Possible use for less inclined roofs, assuming additional measures - one must, however, consult with the manufacturer.

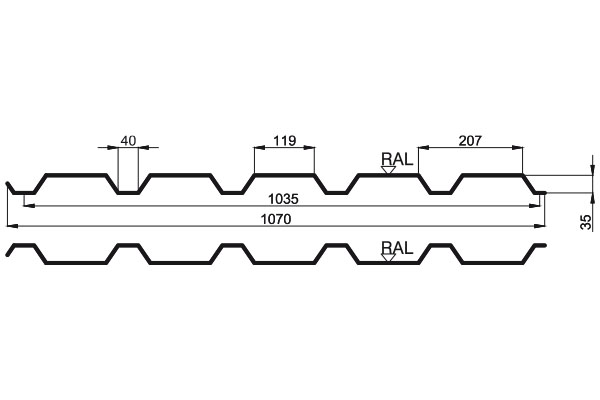

PROFILE DIMENSIONS(mm)
Wave height35
Axial distance between waves207
Composite profile width1 035
Total profile width1 070
Maximum profile length1)<15 000
Minimum profile length500
Standard material thickness0.5–1.00
Minimum roof pitch3)
1) For freight transport by truck, it is possible to use lengths up to a maximum of 13.5 m. The recommended handling length is up to 6 m. 2) We offer some thicknesses only in selected colour shades; one must consult with the supplier. 3) Possible use for less inclined roofs, assuming additional measures - one must, however, consult with the manufacturer.

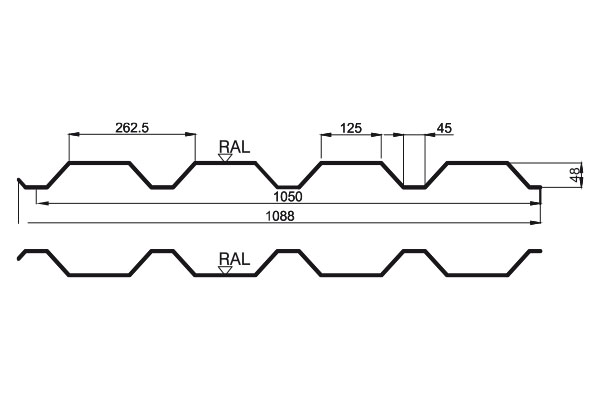

PROFILE DIMENSIONS(mm)
Wave height48
Axial distance between waves262.5
Composite profile width1 050
Total profile width1 088
Maximum profile length1)<15 000
Minimum profile length500
Standard material thickness0.63–1.25
Minimum roof pitch3)
1) For freight transport by truck, it is possible to use lengths up to a maximum of 13.5 m. The recommended handling length is up to 6 m. 2) We offer some thicknesses only in selected colour shades; one must consult with the supplier. 3) Possible use for less inclined roofs, assuming additional measures - one must, however, consult with the manufacturer.
DO YOU HAVE A QUESTION? Fill out a short form, we will contact you. Contact form

INDUSTRIAL DESIGN

Façade systems using the trapezoidal or corrugated profile create a simple industrial character with clean lines and precise façade.

EASY INSTALLATION AT A REASONABLE PRICE

Façades, which are implemented through these elements, are marked by a fast and simple installation process. They are the most affordable option of the DEKMETAL façade system.
